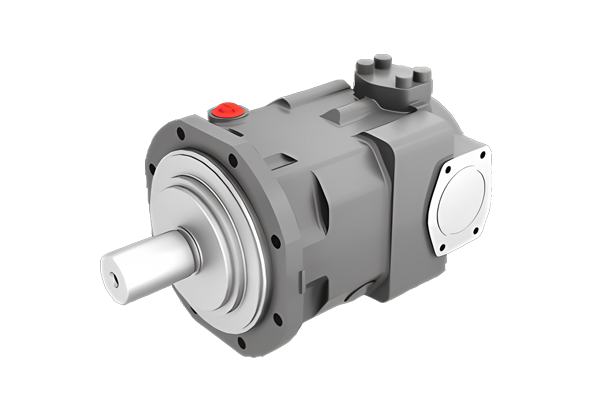

Type F30D Fixed displacement axial piston pump

Series of pictures

The axial piston fixed displacement pumps of the type F30 of D offer extremely high function safety. Its remarkably low noise levels, the high pressure rating, optimined power-to-weight-ratio make it possible to employ it for most industrial.

Nominal pressure pnom : 420 bar

Peak pressure pmax : 450 bar

Displacement Vmax : 280-520 cm³/rev

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

?Low-noise emissions

?Full torque available at the second pump in tandem pump applications

Technical specifications

	Displacement (cm3/rev.)	Rated pressure (bar)	Minimum oil suction pressure (bar）	Shell pressure (bar)	Self suction speed (rpm )	Minimum speed (rpm)	Temperature range (℃ )	Weight (kg)
F30D - 280	280	420	0.85	2 \| instantaneous 3	1800	500	-25~100	131
F30D - 520	520	420	0.85	1 \| instantaneous 2	1500	500	-25~100	252
